Brand:Elites
Product origin:China
Delivery time:2weeks-4 weeks
Supply capacity:Mass production
- Reliable Container Tracking: The Elites container Tracker GS20 is designed for container tracking companies, ensuring the safe recovery of containers with its robust GPS tracking capabilities.
- Durable and Water-Resistant: With an IP67 rating, this device is waterproof and can withstand harsh environments, making it a reliable choice for outdoor use.
- Long-Lasting Battery Life: The LT12 offers a standby time of up to 1800 days, providing continuous tracking without the need for frequent battery replacements.
- Multi-Platform Compatibility: Users can view tracks on either a PC or through the Android app, ensuring seamless tracking and monitoring.
- Compliant with International Standards: The device meets CE, FCC, and ROHS certifications, making it a trusted choice for users in various regions, including "user's country" (please specify the country).
Specification:
|
Physical |

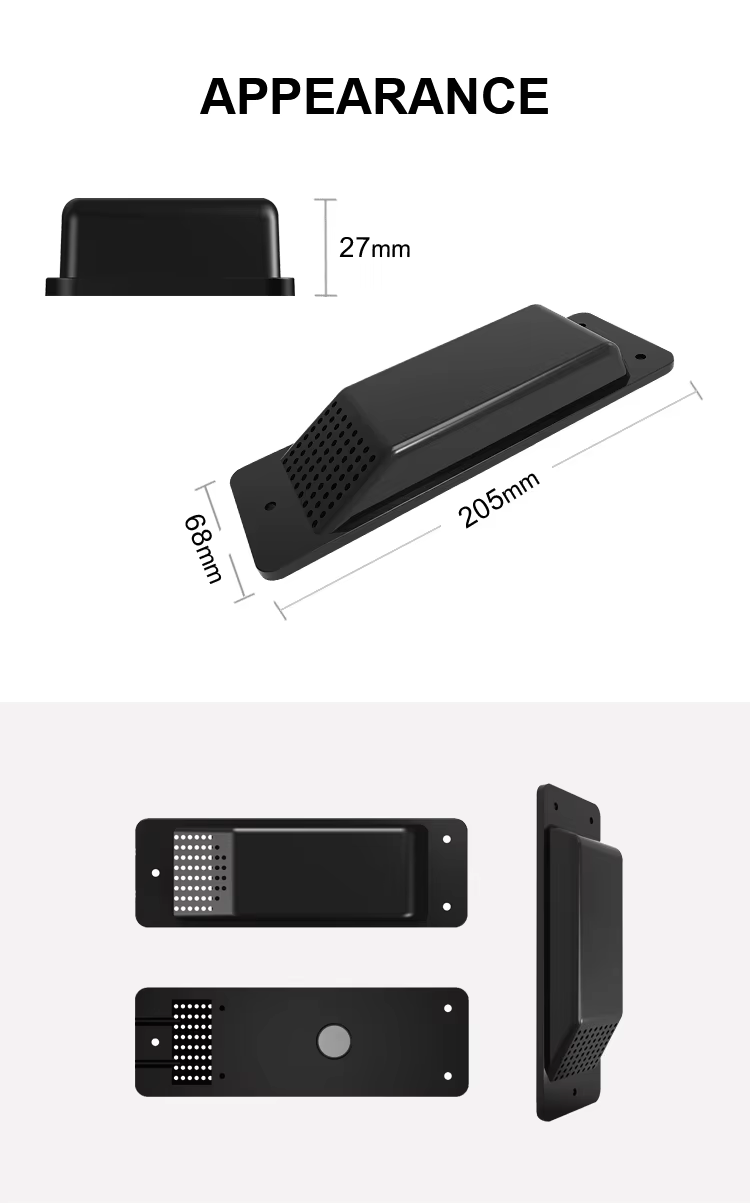

Dimension |
205mm*68mm*27mm(L*W*H) |
|
Weight |
200±5g |
|
|
Cellular |
Communication module |
Quectel EC25 |
|
Frequency |
Working frequency: 4G networks:TDD LTE/FDD LTE 3G networks:WCDMA 2G networks:GSM/GPRS Network Protocol: Embedded TCP/IP stack Sensitivity: -107dBm@850/900MHz -106dBm@1800/1900MHz Output power: Class 4 (2W)@850/900MHz Class 1 (1W)@1800/1900MHz GPRS data: GPRS Class 10, Mobile Station Class B |
|
|
GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
|
Power |
Battery |
Disposable Lithium-ion battery and (3.6V,8100 or 10800 mAh) and ultra-low discharge rate:less than 1%, store one year below 25℃ |
|
Power consumption |
Average working current <100mA; Power save current <15uA; |
|
|
GSM antenna |
Internal High Gain |
|
|
GPS antenna |
Internal High Gain |
|
|
SIM |
Microsim |
|
|
Indicator |
2 status LEDs, Green: GPS, Red: EMTC |
|
|
Environmental Parameter |
Working Temperature |
-20℃ ~ +70℃ |
|
Humidity |
5% ~ 95% (no fog) |
|
|
Ingress Protection Rating |
IP67 |
|
